AlphaFold 3 on bwVisu
Welcome to the AlphaFold Tutorial for bwVisu!
This tutorial will guide you through running AlphaFold 3 on bwVisu. Please follow these steps carefully. Any feedback on the tutorial is welcome! Feel free to contact us!
Preparation
Step 1: Get access to bwVisu
To start, get access to bwVisu via bwForCluster Helix or SDS. For more information, visit
https://www.urz.uni-heidelberg.de/en/service-catalogue/software-and-applications/bwvisu
For technical questions regarding the high performance cluster, see https://bw-support.scc.kit.edu. Feel free to contact us for support.
Step 2: Obtain Model Weights from AlphaFold
Each user needs to individually obtain the model weights for AlphaFold3. Download the model weights from AlphaFold using this form:
https://forms.gle/svvpY4u2jsHEwWYS6
Note that this can take up to a few days!
Legal Note
Please note that your use of AlphaFold is subject to the terms and conditions outlined in the https://github.com/google-deepmind/alphafold3/blob/main/WEIGHTS_TERMS_OF_USE.md. You are responsible for ensuring you comply with these terms.
Part 1: Alignment
Step 3: Connect to bwVisu and Start Jupyter
Go to https://bwvisu.bwservices.uni-heidelberg.de/ and log in with your credentials and one-time password.
Choose Jupyter and start a new session. Now you can select the resources you need.
The first step of the AlphaFold prediction is a multi-sequence alignment (MSA). For the MSA step, select 8 CPU cores with 10 GB of memory. The GPU necessary for the second step will be requested later.
Click on "Launch". This will bring you to a new screen showing your interactive sessions. Wait for your session to be ready, then click on "Connect to Jupyter". This brings you into a JupyterLab environment.
Step 4: Set a Working Directory and Upload Files
First we need to define a working directory. That can be your home or any directory you create. These will contain all files necessary for the tutorial. A new directory can be created using folder icon on the top left of the file browser:
Next all required files need to be uploaded. This includes the notebooks from our github and the AlphaFold parameters. You can upload these files by clicking on the upload button:
Note that the AlphaFold parameter file is zipped as af3.bin.zst. Unpack the file to obtain af3.bin. This file then needs to be uploaded to a directory in your working directory, such as /af3models.
After the upload, you can see your files in the file browser on the left.
Step 5: Start the Alinment
Open Afold_Alignment_CPU.ipynb and execute the cells in the notebook to start your AlphaFold run!
Verify Input
Before starting your AlphaFold 3 alignment you should see the following files in your working directory:
Verify Output
In the output directory, there should be a second .json file in the output/test directory. This includes all the information from the input file and the results of the MSA.
You can now close this interactive session session on bwVisu, as the CPU is no longer needed, and move to the second step.
Part 2: Inference
Step 6: Start a Second Jupyter Session
The second step of the AlphaFold prediction is the inference of the structure by the model, and it requires a GPU. Therefore we need another Jupyter session, where we need a GPU, so we need to request a GPU node on bwVisu. A list of available GPUs and their specifications is available at https://wiki.bwhpc.de/e/Helix/Hardware#Compute_Nodes , or in the table below.
The GPU is selected by "GPU Type". The memory of each GPU Type is specified in GPU Memory per GPU (GB). For this example we select one of the A40 GPUs. Larger jobs (= longer sequences, more chains) require more memory. To access these, it is suggested to run the job directly on the Helix cluster. We will prepare a tutorial for this shortly - feel free to contact us!
Click on "Launch". This will bring you to a new screen showing your interactive sessions. Wait for your session to be ready, then click on "Connect to Jupyter". This brings you into a JupyterLab environment.
Step 7: Set Up Your Diffusion Run Within the Notebook
Open AFold_Diffusion_GPU.ipynb. We will use the same directories that you created earlier. Make sure to use the exact same names for directories as in Afold_Alignment_CPU.ipynb.
Execute the cells in the notebook to continue your AlphaFold run!
Verify Input
Before starting your AlphaFold 3 diffusion you should see the following files in your working directory:
Verify Output
You should see the AlphaFold output files:
By default AlphaFold creates 5 samples from one seed, and sorts them in individual directories. Their ranking scores are reported in a csv table. The best model is presented in the output directory as well, with its structure file and confidence descriptions. The latter are needed to judge the quality of the prediction.
Legal Note
Please note that you must ensure your use and distribution of the AlphaFold outputs comply with the Output Terms of Use.
Part 3: Analysis
Step 8: Start another Jupyter Session
You can use Afold_Confidence_Levels.ipynb to get a summary of the models confidence levels. This notebook reads the confidence descriptions and renders its central information.
For this last notebook, you need to have access to a shared directory that includes libraries that are used to analyze and visualize the output. Start a new JupyterLab session and define the Kernel Path to the AlphaFold kernel at /mnt/sds-hd/sd25g005/afold3/share/jupyter/. Contact us for access to this shared directory.
Click on "Launch". This will bring you to a new screen showing your interactive sessions. Wait for your session to be ready, then click on "Connect to Jupyter". This brings you into a JupyterLab environment.
Step 9: Analyze your results

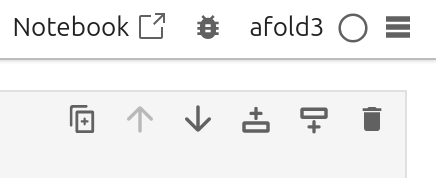

Open Afold_Confidence_Levels.ipynb and select the afold3 kernel. You can verify the kernel in the top right corner of your JupyterLab instance:
After this, the analysis should run without any errors. Explanations of the output are provided in the notebook.
To visualize your predicted structures, download them to your computer and open the files with programs such as Pymol or ChimeraX. To visualize the pIDDT in "classic" AlphaFold colors, use this quick tutorial. This allows to visualize more and less confident areas of the predicted structure.
If you need more assistance with the analysis, feel free to contact us.
