heiplanet Frontend Mapping application

Description

The heiplanet Mapping project shows the predictions and predicted susceptibility in the future of different diseases by Infectious disease/Climate models from the group, across different regions in the map.

This repository contains the frontend for the Climate Map. The user can browse for models with the Model Selector, and change the year to see future suspcetibility predictions.

It can be configured to request and display NUTS3 regions, or worldwide equivalent regions, which is dependent upon the underlying model.

Background context on the view types (technically specific)

For the worldwide view, the data is projected from individual points into polygons on the frontend.

NUTS(Europe) Data loading full service chain

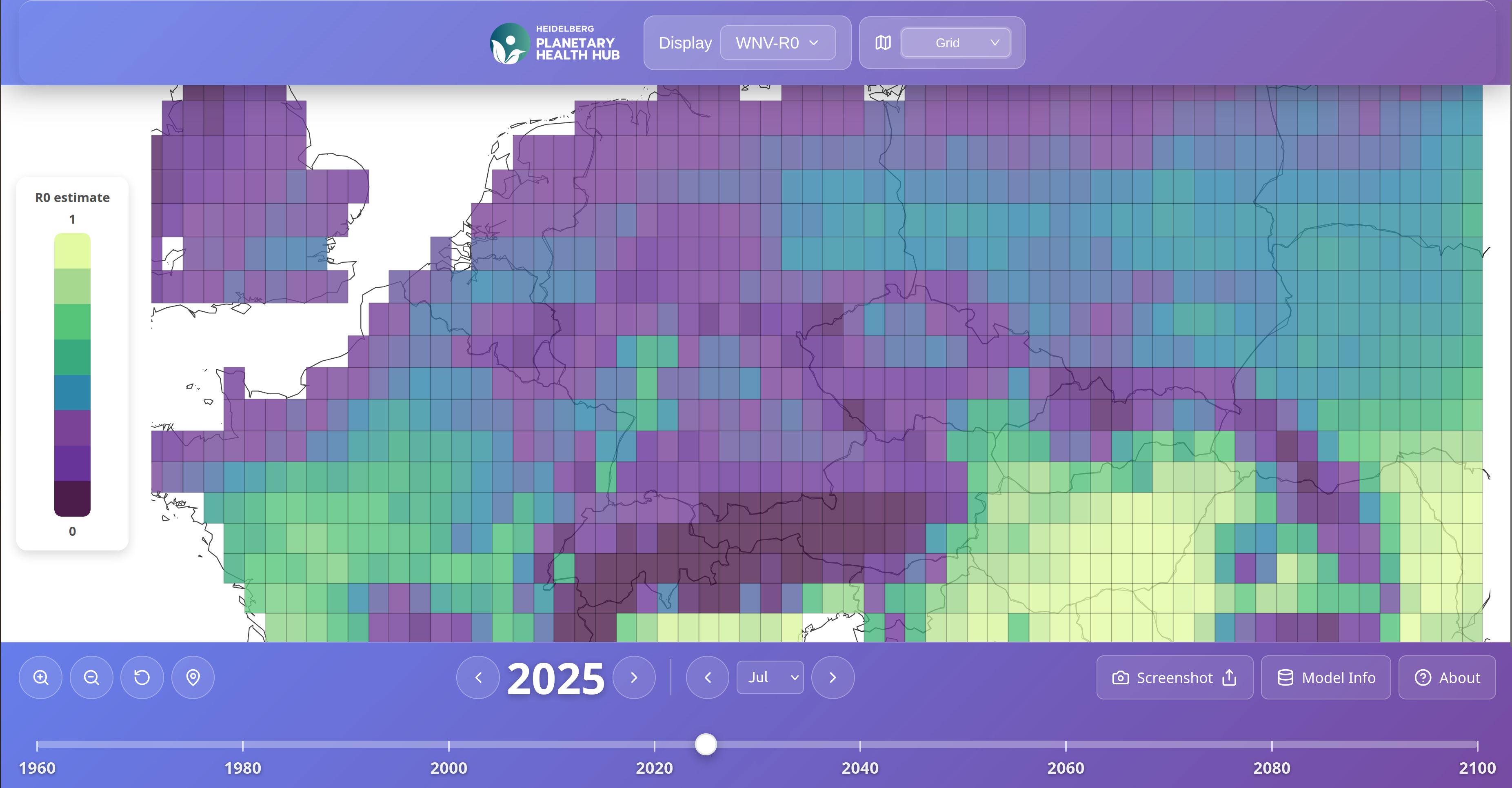

Example: Worldwide Simple R0 example

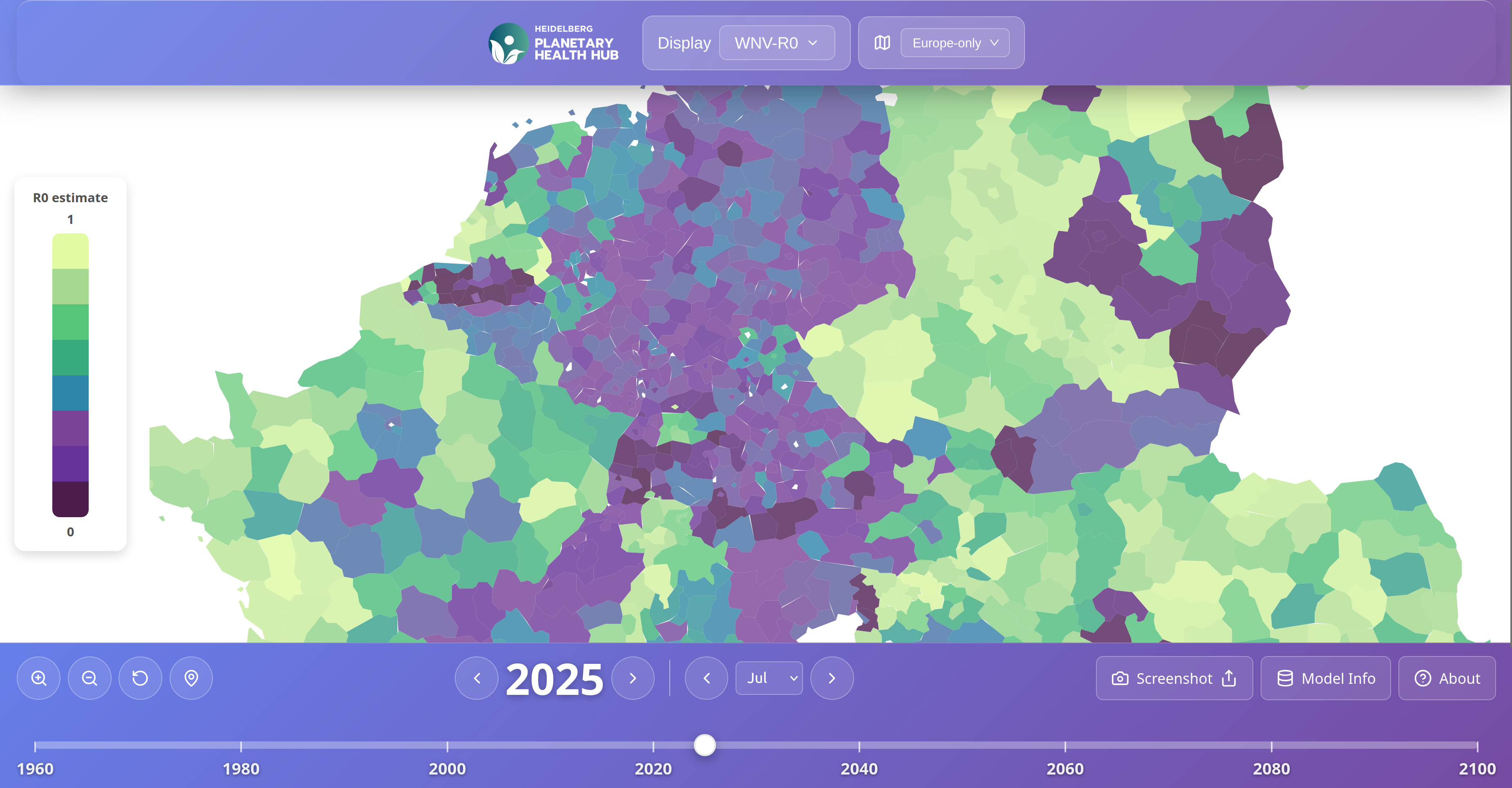

Example: NUTS version

Data Flow

The data flow adjusts the shown map data based principally on the user's selected model and date. The user can also view the map in two modes, europe-only or grid, which changes the flow of data. You can read more here.

Installation guide

• First, make sure the onehealth-db repository is running with the API accessible. It depends upon a running postgres database, typically docker name my-postgres. The API must be able to return generated data for 2016 and 2017.
• Run pnpm i to install dependencies.
• Run pnpm run dev to launch the application.

Usage examples

The website can be used by visiting http://localhost:5173/map, which will present the user with two view modes.

You can also share the link directly to a specific view mode: - Citizen: http://localhost:5173/map/citizen - Expert: http://localhost:5173/map/expert

Support, contributing and authors

Create an issue in the repository.

License

MIT, see LICENSE.md.

Project status

Under development.

No future roadmap items remain.
